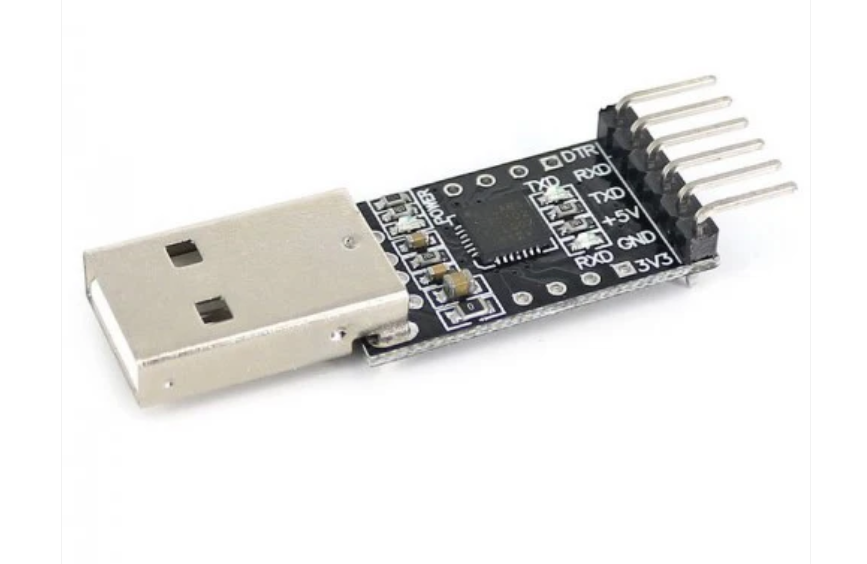

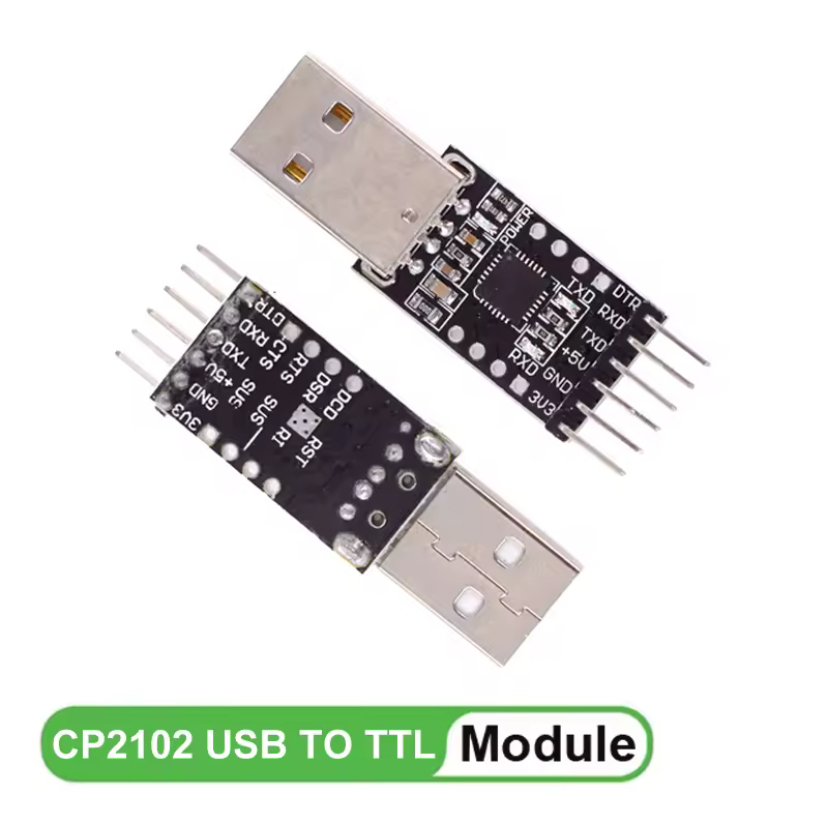

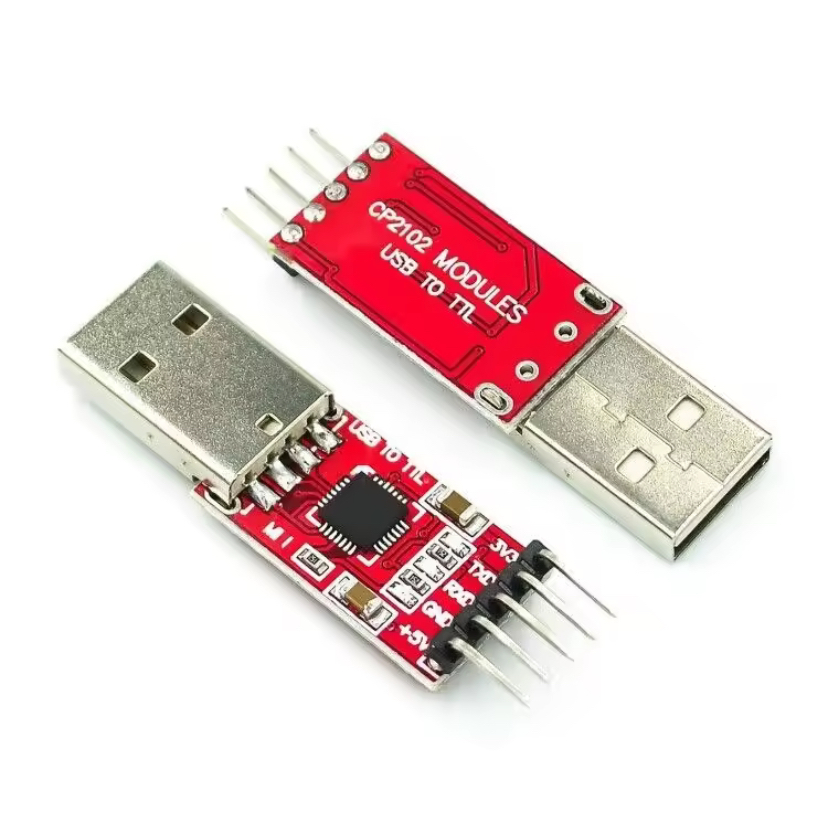

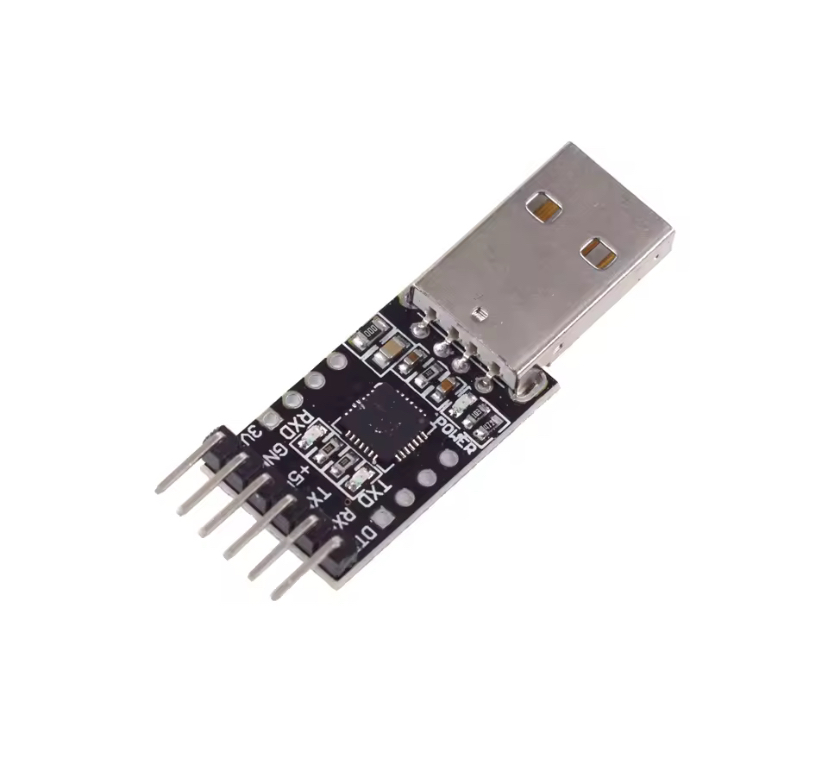

Product Description:

The USB TTL converter UART module is a compact and reliable interface for connecting microcontrollers, development boards, and embedded devices to a computer via USB. It enables serial communication between your PC and devices such as Arduino, ESP8266, ESP32, STM32, or other UART-based systems.

Built with a high-quality chip (commonly FT232RL, CH340G, or CP2102), this module ensures stable data transmission and easy plug-and-play installation across multiple platforms (Windows, Linux, macOS).

---

Key Features:

• Plug & Play – Simple USB connection, no external power required.

• Supports 3.3V and 5V logic levels (selectable via jumper or pin).

• High-speed data transmission – up to 1Mbps (depending on chip model).

• Compatible with popular boards like Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and AVR.

• Built-in power and TX/RX indicator LEDs for communication status.

• Overcurrent and overvoltage protection for device safety.

---

Pin Configuration:

• DTR – Data Terminal Ready

• RXD – Receive Data

• TXD – Transmit Data

• +5V – 5V Output

• GND – Ground

• 3V3 – 3.3V Output

---

Applications:

• Programming microcontrollers (Arduino, ESP8266, ESP32, etc.)

• Serial debugging and communication testing

• IoT device development

• Firmware uploading and data logging

• USB-to-serial communication bridge

---

Package Includes:

• 1 × USB to TTL Serial Converter Module
